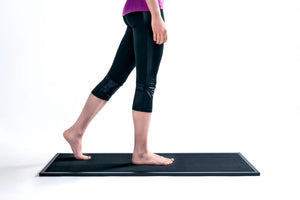

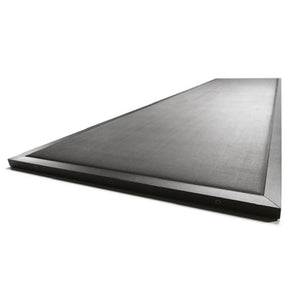

The footscan pressure measuring system is a state-of-the-art device designed for gait recording and analysis. Software (sold separately) accurately records pressure data
plantar, static and dynamic, on subjects barefoot or in shoes.
3D scanners can be used to create a three-dimensional representation of the foot. Please refer to the manual included with your 3D scanner for more information.

Dimensions: 1605 x 469 x 18 mm

Weight 24KG

Number of sensors: 12288 (192 x 64 matrix)

Sensor dimensions: 7.62 x 5.08 mm

Active detection area: 1463 x 325 mm

Sensors (technology): resistive

Pressure range: 1 – 127 N/cm2

Acquisition frequency 200 Hz

10-bit resolution

Operating temperature: +15°C to +30°C

Storage temperature: +0°C to +40°C

Operating conditions (humidity): 20% to 80% non-condensing

PC connection: USB 2.0

Cable (length): 4600mm +/- 50mm
